The NEW Ottawa T2 Terminal Tractor
(Available in 4×2 Off-Road or DOT/EPA versions)
- Increased visibility with a more ergonomic cab
- Taller and wider door for easier entry and exit
- Larger, roomer and more comfortable cab environment with everything in easy reach
- Open C-channel chassis design provides more strength, better protection and less maintenance
- Suspended control pedals for better operator feel and control
- Faster and stronger fifth wheel lifting, with spherical bearings both bottom and top
- Tapered 3-Leaf Springs help provide a smoother ride.
- No front spring lubrication required.
- Easier serviceability.
- Ground-level service points and systems access through cab panels

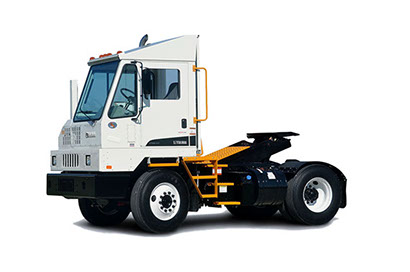

Ottawa 4×2 Off-Road Terminal Tractor
The standard of the industry for general purpose off-road trailer spotting.
- 116” Wheelbase Off-Road 4×2
- Cummins Tier 4i QSB6.7-165HP @ 2200 RPM
- 540-lb/ft torque @ 1500 RPM
- MaxiMizer Fuel Reduction System
- Allison 3000 RDS 6-Speed Automatic Transmission
- Meritor FF-961 Front and RS-24-160 Rear Axles
- Holland FW-35 - 70,000-lb. Plate Rating Fifth Wheel
- 5” Hydraulic Cylinders - 17” Lift, 60,000-lb. Rating
- Max Speed 25 mph standard
- GCWR 81,000 lbs
Ottawa 4×2 DOT/EPA Terminal Tractor
On-road capability offers expands usage for short-shuttling and other hauling between work sites.
- 116” Wheelbase 4×2 DOT/EPA Certified
- Cummins ISB6.7 200 HP 2013 Clean Idle Certified @ 2300 RPM
- 520 lb/ft torque @ 1600 RPM, with OBD
- Allison 3000RDS 6-Speed Automatic Transmission
- Meritor FF-961 Front and RS-24-160 Rear Axles
- Holland FW-35 - 70,000-lb. Plate Rating Fifth Wheel
- 5” Hydraulic Cylinders - 17” Lift, 60,000-lb. Rating
- Max Speed 31-33 mph w/o ABS, 45 mph with ABS
- GCWR 81,000 lbs.

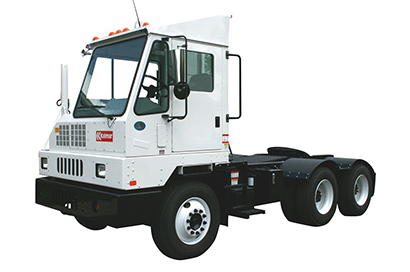

Ottawa 6×4 DOT/EPA Terminal Tractor
Two rear axles and 4-wheel drive provide increased flexibility, in rougher and inclined terrain.
- 146” Wheelbase 6×4 DOT/EPA Certified
- Cummins ISB6.7 200 HP 2013 Clean Idle Certified @ 2,300 RPM & 520 lb/ft torque @ 1600 RPM
- Allison 3000RDS 6-Speed Automatic Transmission
- Meritor FF961 Front and RT-40-145 Rear Axles
- Holland FW-35 - 70,000-lb. Plate Rating Fifth Wheel
- 5” Hydraulic Cylinders - 17” Lift, 60,000-lb. Rating
- Max Speed 31-33 mph w/o ABS, 45 mph with ABS
- GCWR 81,000 lbs
