ECB20 & ECB25

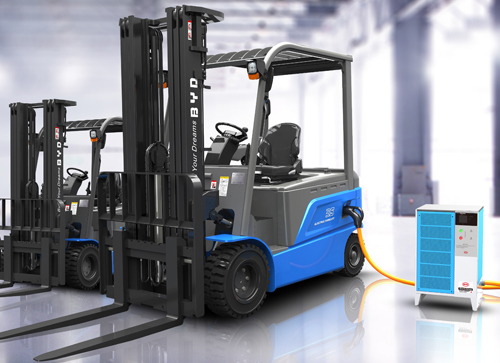

4,400 to 5,700-lbs Capacity - 4-Wheeled Counter Balance Forklift

Lithium Iron Phosphate Battery Electric - Pneumatic Forklift

Standard Equipment:

  • Highest level of quality design and construction
  • Proprietary lithium iron phosphate battery
  • Side charging (no battery compartment covering)
  • Ultra-fast charger

Model: ECB20 & 25 Basic (Options are available)

Capacity: 2.0 & 2.5 Metric Tonnes

Mast: Triplex 4750mm Lift Height

Battery: Lithium Iron Phosphate 80V Technology

ECB20 & 25 Comfort Model has the same features as the Basic Model, PLUS:

  • Multifunction armrest with finger-tip control
  • Grammer MSG 65 full suspension seat
  • Dual full free lift cylinders mast (clear front view)
  • Lots of options are available.
Overload Protection When load exceeds 10% of the rated load capacity, the lifting motor will stop working for safety concern. Multifunction TFT Screen Displays travel speed, battery remaining capacity, clock, working hours and accumulated working hours; 3 speed modes setting. Auto Speed Reduction The speed of the truck will be reduced automatically, when cornering, to enhance lateral stability and reduce the risk of tipping over. Braking Assist System Braking Assist System allows the truck to stand still instead of rolling forward or backwards after releasing the brake on a slope.
Battery Charger Combinations The BYD Lithium Iron Phosphate battery can be fully recharged in just 1.1 hours, and be used immediately after without the cooling time required in common batteries. Several chargers are available to customize the charging time to the customer needs. The BYD battery and the BYD chargers are based on 80V lithium iron phosphate technology. The higher charging and discharging efficiency of the battery provides the same kWh as a larger nominal capacity Lead acid battery.
Toughest & Most Dependable Battery BYD’s world leading Lithium Iron Phosphate Battery can withstand the toughest working conditions; no fire or explosion, even when exposed to extreme conditions. No acid vapor is released during the charging process, and no thermal runaway hidden danger.

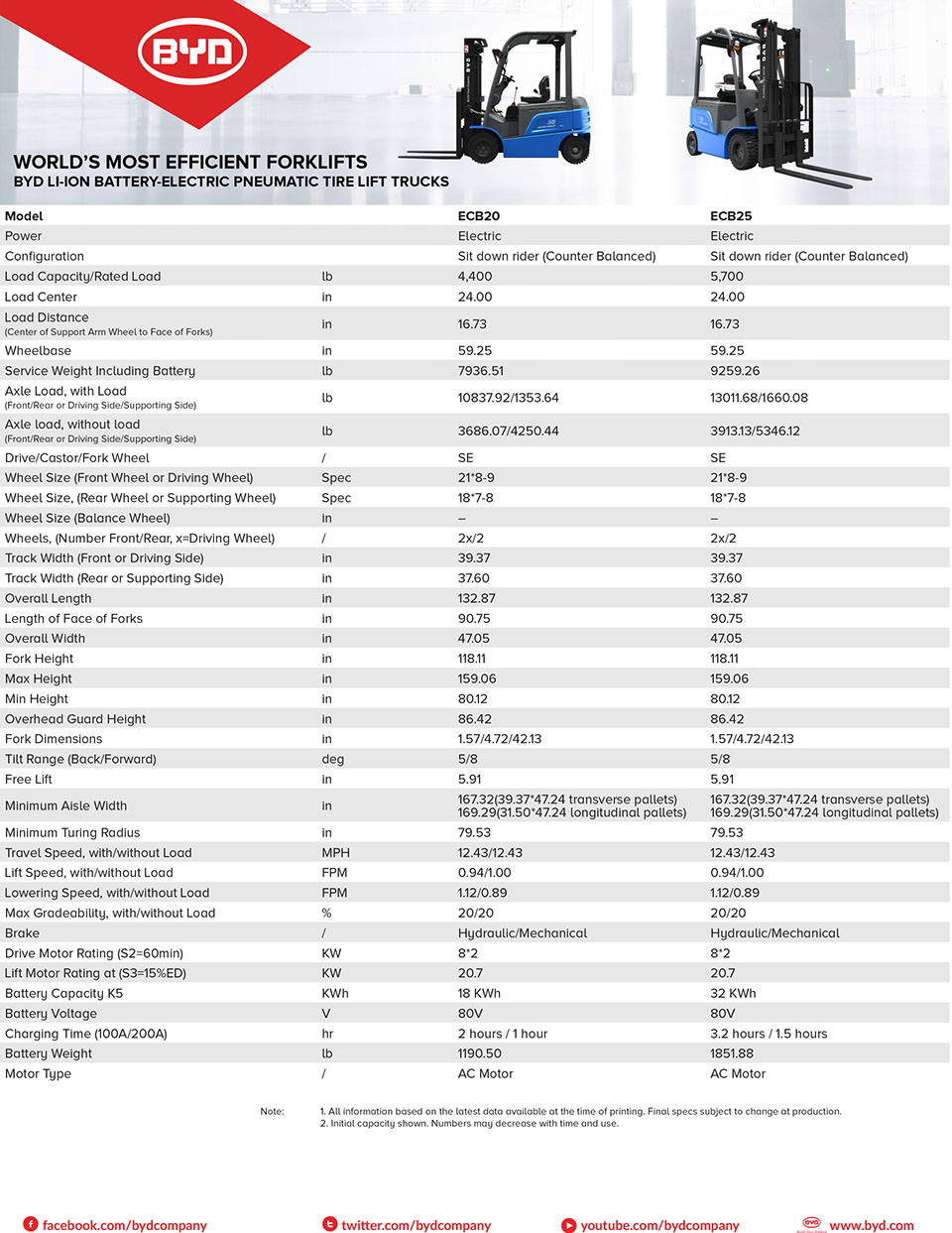

SPECIFICATIONS SHEET
