PORT OPERATIONS
.png?crc=148184922)
Empty Container Handlers
XEC-155/6
15,000 lbs @ 100” Center of Load
Features:
The Taylor XEC-155/6 Dedicated Empty Container Handler is designed to handle 8.5’ containers stacked 6-High and 9.5’ containers stacked 5-High. This truck features a Heavy Duty Taylor designed side-pick spreader, 150” wheelbase, 173 HP Tier 4 Final diesel engine, and End-User diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call. Taylor Big Red…Engineering the Ultimate Lift Truck.
Need Help? CLICK FOR SALES

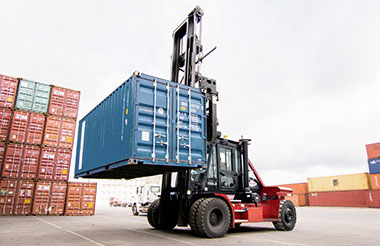

XEC-150LE
15,500 lbs @ 100” Center of Load
Features:
The XEC-150LE Dedicated Empty Container Handler is designed to handle 8.5’ containers stacked 4-High and 9.5’ containers stacked 4-High. This truck features a Heavy Duty Taylor Designed Side-Pick Spreader, 138” wheelbase, 173 HP tier 4 final diesel engine, and end-user diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call.
Need Help? CLICK FOR SALES
XEC-205/6, XEC-206/7 & XEC-207/8
20,000 lbs @ 103” Center of Load
Features:
The Taylor 20,000-lb capacity Dedicated Empty Container Handlers are designed to handle 8.5’ containers stacked up to 8-High and 9.5’ containers stacked up to 7-High. This truck features a Heavy Duty Taylor designed side-pick spreader, 180” wheelbase, 225 HP Tier 4 Final diesel engine, and End-User diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call. Taylor Big Red…Port Operations Specialist!
Need Help? CLICK FOR SALES
Loaded Container Handlers
XLC-975
90,000 lbs @ 97” L.C. (2 High)
80,000 lbs @ 97” L.C. (5 High)
82,000 lbs @ 106” L.C. (2 High)
75,000 lbs @ 106” L.C. (5 High)
Features:
The Taylor XLC-975 Dedicated Loaded Container Handler is designed to handle Loaded Containers stacked up to 5-High. This truck features a Heavy Duty Taylor designed Top-pick 4-point spreader, 236” wheelbase, 388 HP Tier 4 Final diesel engine, and End-User diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call. Taylor Big Red…Port Operations Specialist!
Need Help? CLICK FOR SALES
XLC-976
90,000 lbs @ 97” L.C. (2 High)
80,000 lbs @ 97” L.C. (6 High)
82,000 lbs @ 106” L.C. (2 High)
75,000 lbs @ 106” L.C. (6 High)
Features:
The Taylor XLC-976 Dedicated Loaded Container Handler is designed to handle Loaded Containers stacked up to 6-High. This truck features a Heavy Duty Taylor designed Top-pick 4-point spreader, 236” wheelbase, 388 HP Tier 4 Final diesel engine, and End-User diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call. Taylor Big Red…Port Operations Specialist!
Need Help? CLICK FOR SALES
Reach Stackers
XRS-9972
99,000 lbs 1st Row (4 High)
90,400 lbs 1st Row (6 High)
Applications:
Stevedoring & Container Yards, Intermodal, Breakbulk, Wind Power.
Features:
The Taylor XRS-9972 Reachstacker is designed to handle Loaded Containers stacked up to 5-High first row, 4-High second row and 3-High third row. This truck features a Heavy Duty Taylor designed Top-pick 4-point spreader with up to 185 degree rotation, hydraulic cab positioning, 388 HP Tier 4 Final diesel engine, and End-User diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call. Engineering the Ultimate Lifttruck!
Need Help? CLICK FOR SALES
Removable Counterweight
X-550RC & X-1000RC
55,000 lbs @ 36” L.C.
100,000 lbs @ 48” L.C.
Applications:
Port Operations, Steel & Aluminum, Stevedoring.
Features:
These Taylor Heavy Duty Removable Counterweight Lift Trucks are Purpose Built for the Port Operations Industry and are unique in their ability to be lifted into the hulls of ships in to handle Steel and tackle other Heavy Material handling needs. With Capacities of up to 100,000-lbs, Tier 4 Final diesel engines to 388 HP, and Removable Counterweights, These Taylor Lift Trucks have become an invaluable piece of the Port Operations Industry. Taylor Big Red. Engineering the Ultimate Lift Truck.
Need Help? CLICK FOR SALES
Roll-On Roll-Off (RORO)
X-620RR & X-720RR
62,000 lbs @ 48” L.C.
72,000 lbs @ 48” L.C.
Applications:
Port Operations, Stevedoring & Container Yards, Intermodal
Features:
This line of Taylor Heavy Duty Lift Trucks Is Purpose Built to operate in the Port Operations Environment and specifically to load/unload RORO ships. With a 167” W.B., on the X-620RR, and a 185" W.B., on the X-720RR, RORO specific trucks offer Big Truck performance in a small package. Taylor Big Red…Port Operations Specialist!
Need Help? CLICK FOR SALES
